2002 KING AIR C90B | SN LJ-1665

DOWNLOAD FULL Specsheet PDF

HIGHLIGHTS

2018 Paint & Interior
Upgraded Blackhawk -135A Engines
$130,000 Garmin Panel
HALO Gross Weight Mod
Stevens Aviation Maintained

Airframe

3,264 Hours Total Time (as of 2.1.21)
2,730 Landings
CAMP Maintenance Tracking
FAR Part 91 Certification

Engines

(2) Pratt & Whitney PT6A-135A

Engine #1
SN: PCE-PZ0740
2,098.2 Hours Total Time
1,684 Total Cycles
429 Since Hot Section Inspection
1,518 Hours Before TBO

Engine #2
SN: PCE-PZ0741
2,098.2 Hours Total Time
1,684 Total Cycles
429 Since Hot Section Inspection
1,518 Hours Before TBO

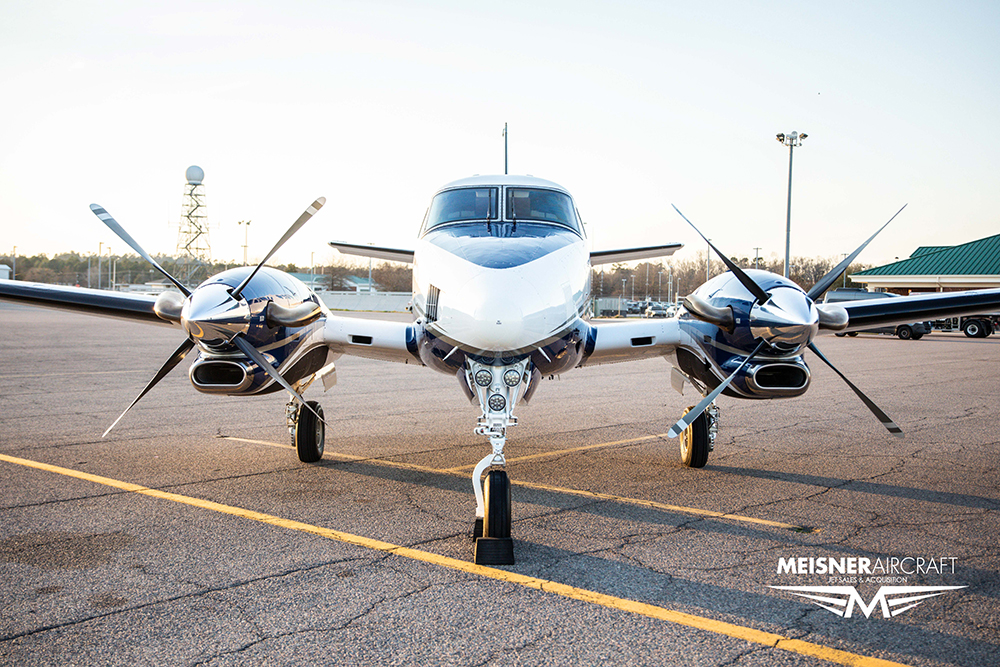

PROPS

Hartzell HC-E4N-3N 4-Blade
3658.5 / 3658.5 Hours Total Time
639 / 639 Hours Since Overhauls

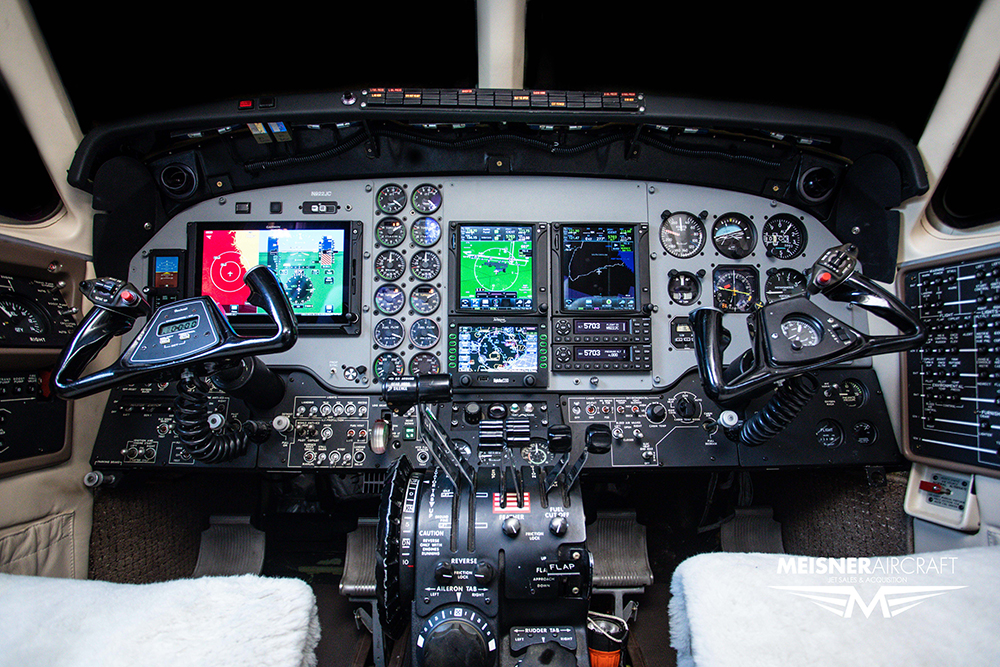

Avionics

Custom Garmin Suite – ADS-B In & Out
Garmin G600TXi PFD (10.6” Display)
Dual Garmin GTN-750’s with Connext Option w/Texting & Voice
Flight Stream 510 Bluetooth connection for FLP Plan Up and Down link
Garmin GTX 335R Transponder with ADS-B out remotely controlled by the GTN750s
Garmin GTX 345R Transponder with ADS-B In and Out with Blue tooth connections for PEDS for weather and traffic with display
Avidyne EX500 Multi-function display for EGPWS, Radar, Moving Map and TCAD traffic
Avidyne 9900 TCAD Traffic Advisory
Collins ALT-55A Radio Altimeter
Meggitt 28007 Encoding Altimeter
GSR-56 Iridium Satellite Transceiver
Aerosonic 101450 Encoding Altimeter
Collins APC-65H Autopilot
Fairchild S100-0080 Cockpit Voice Recorder
Collins DME-42 Distance Measuring Equipment
Collins RMI-30 Radio Magnetic Indicator
BFG WX-500 Stormscope
King KGP-560 EGPWS Enhanced Ground Proximity Warning System
Precise Flight 1210 Pulselites interfaced with Avidyne 9900 Traffic

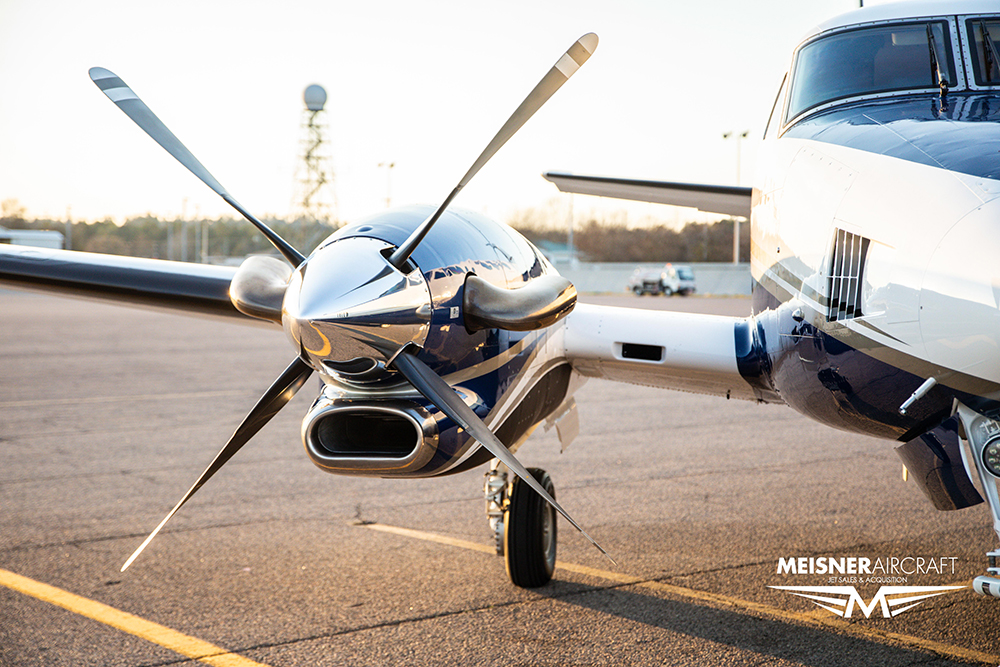

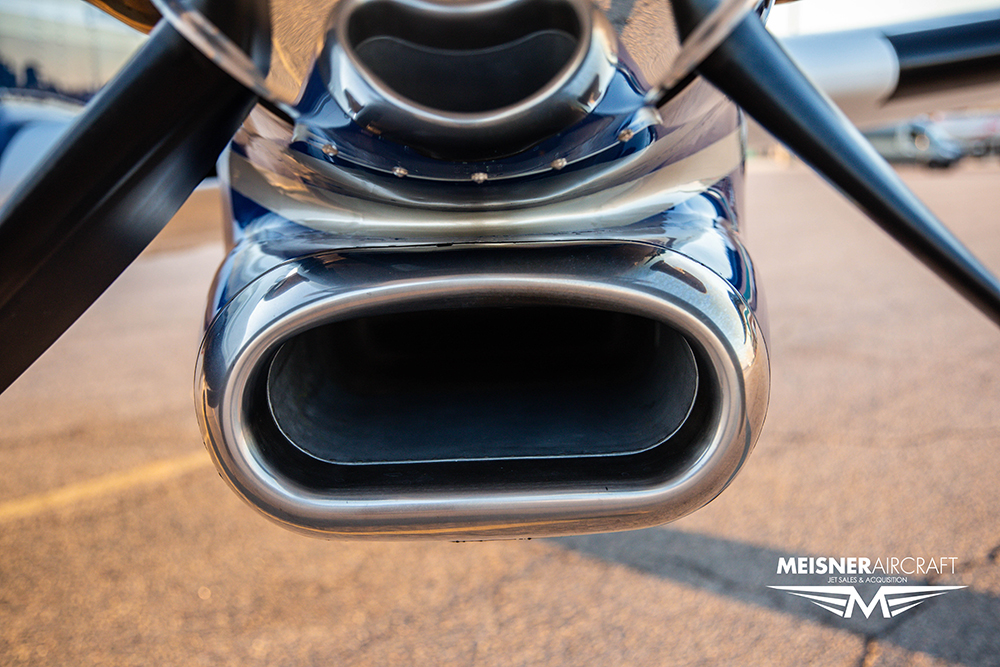

Frakes Exhaust Stacks
Backup EHSI – Mid Continent MD302

OPTIONAL EQUIPMENT

USB Power Ports in Cabin
HALO Gross Weight Increase
Pulselite 1210 Interfaced with Avidyne Traffic
Frakes Exhaust
Cleveland Wheels & Brakes
AvFab Window Shade Upgrade
XM Weather

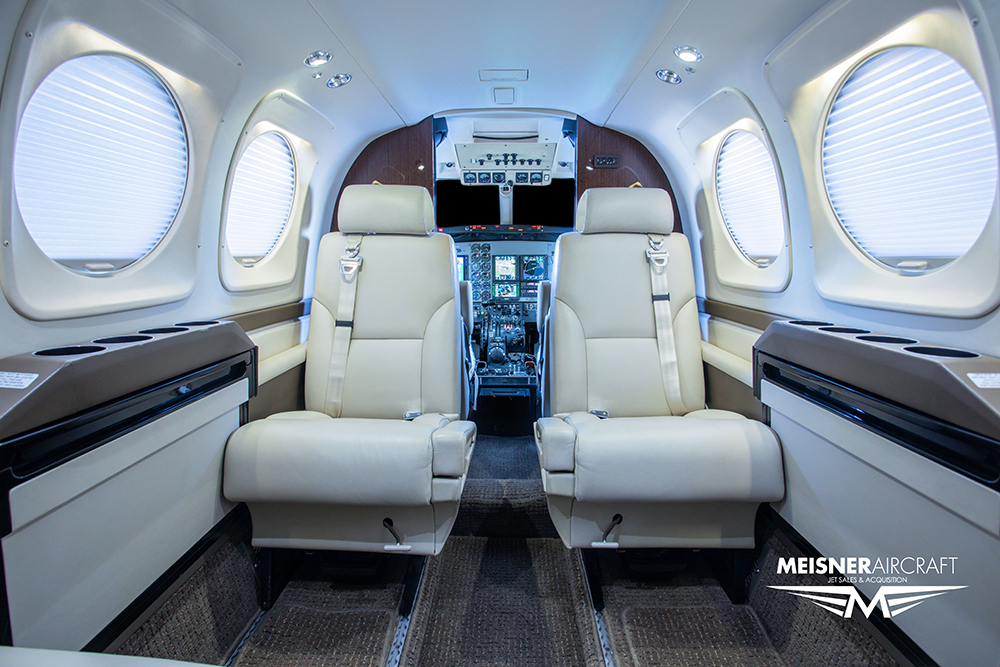

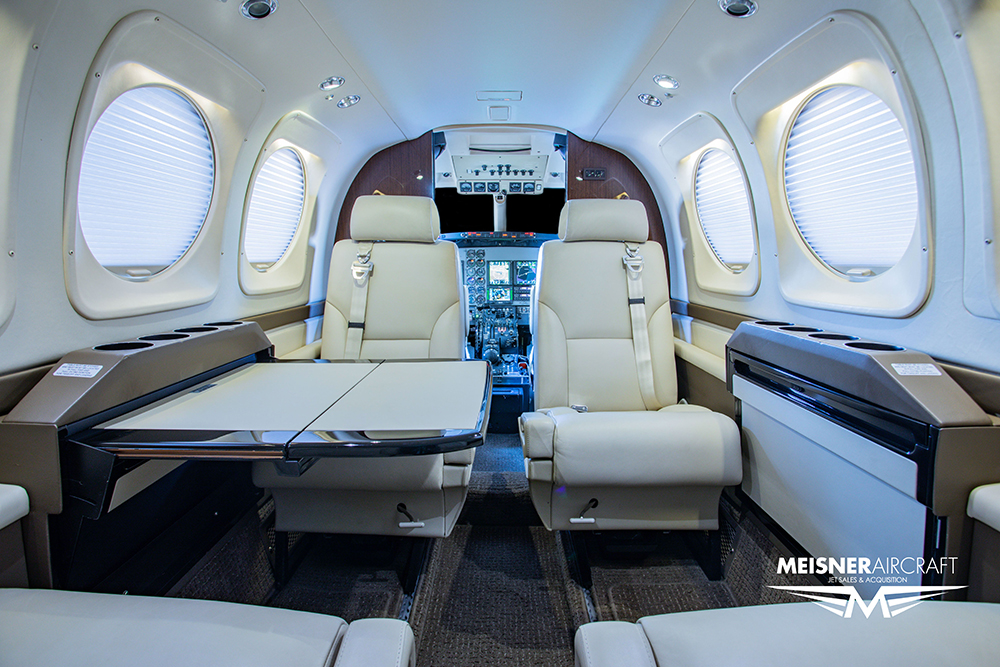

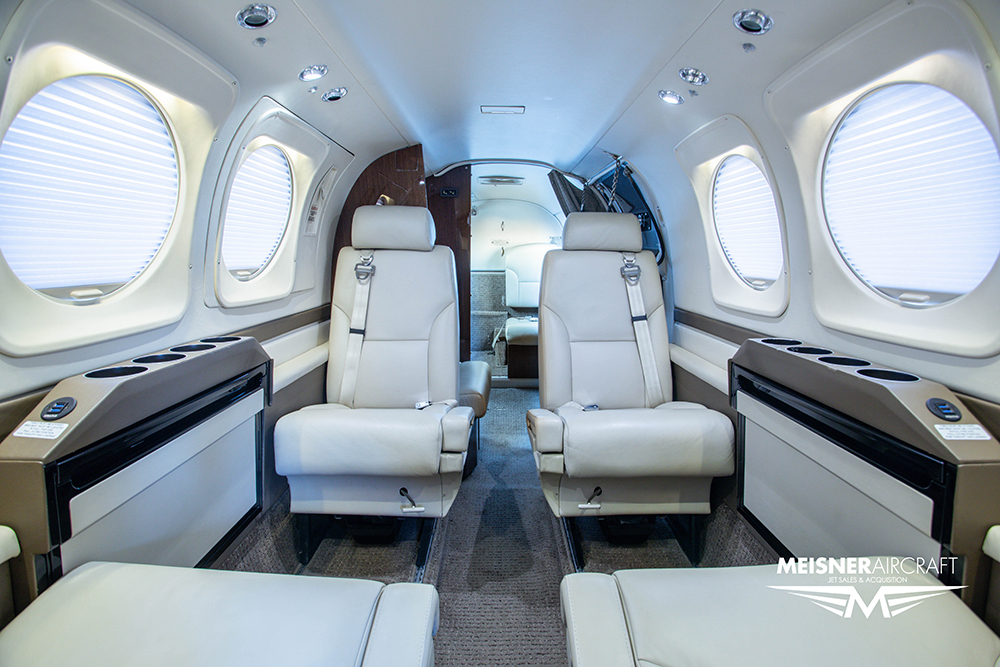

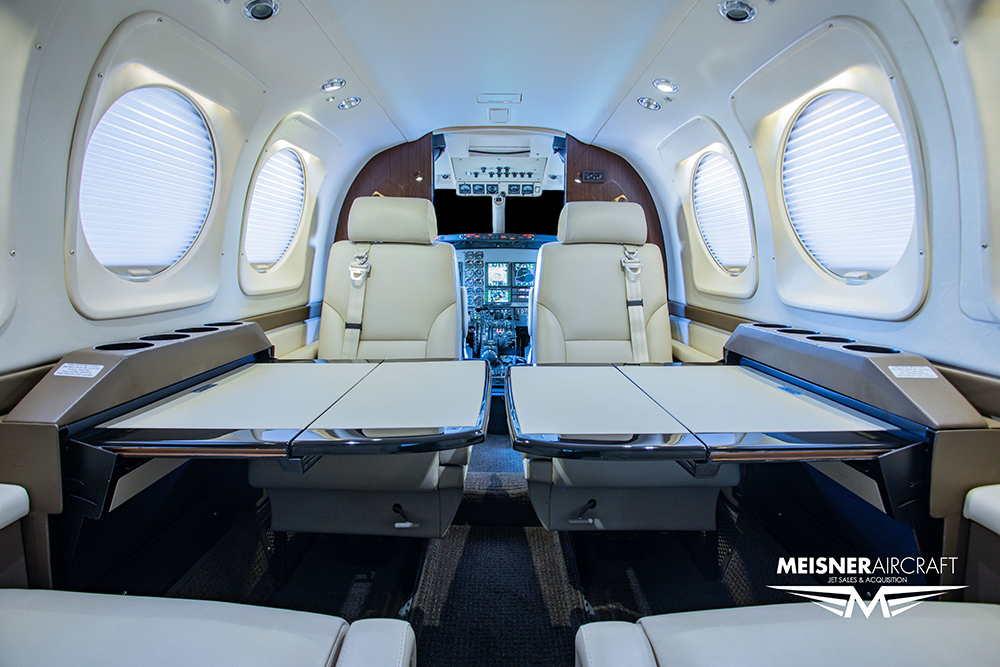

Interior

Completed in 2018

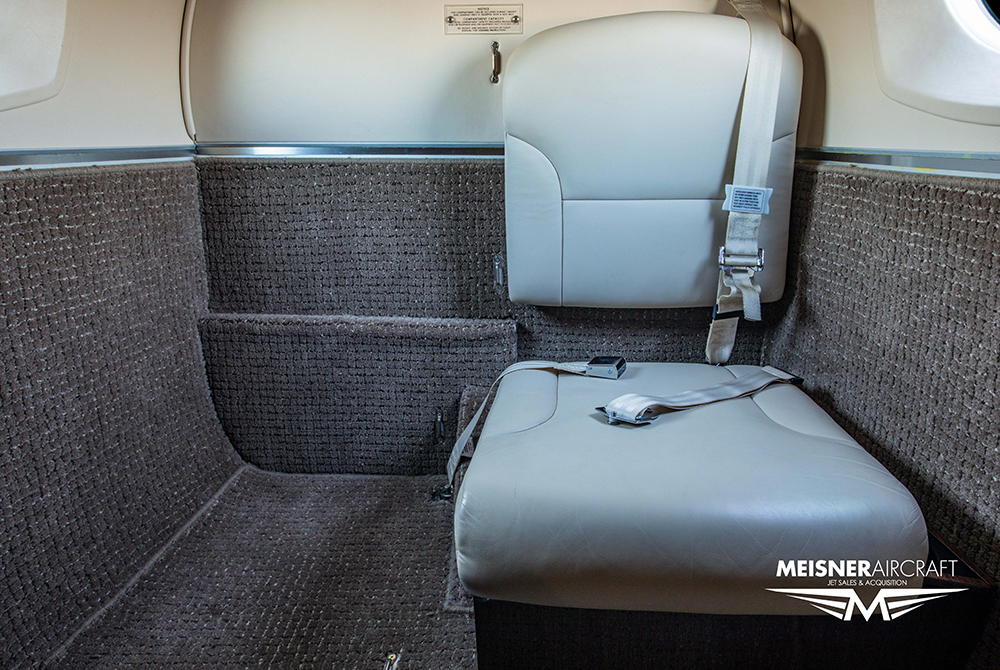

6-Passenger Four (4) Place Club Configuration with Single Side-Facing Seat, Aft Luggage Area with Forward Facing Belted Lav Seat

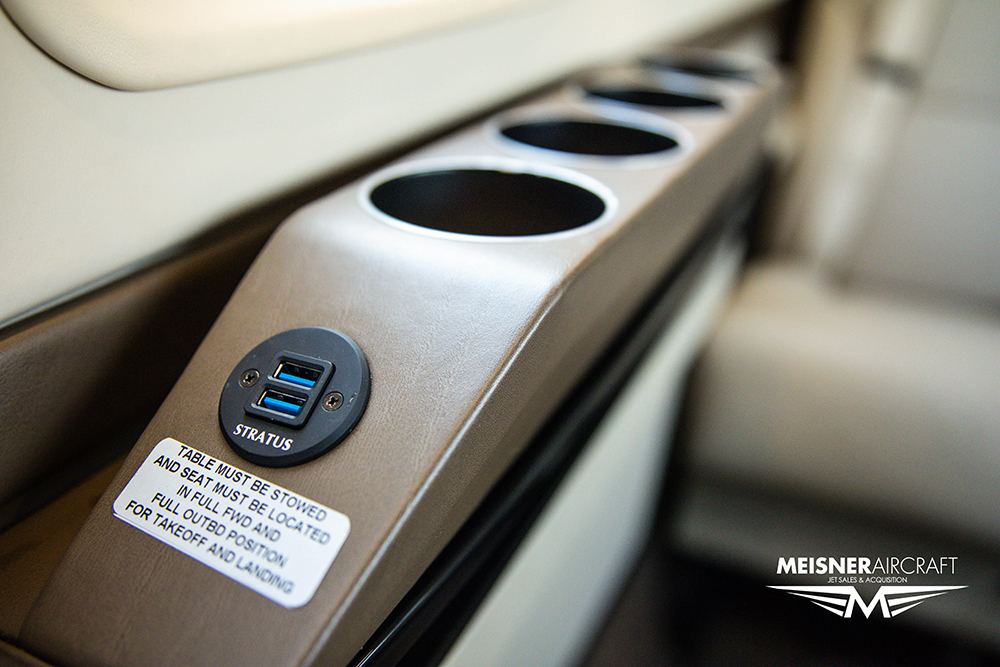

USB Charging Ports

AvFab Window Shades (unique to King Air)

Deeper Customized Cupholders

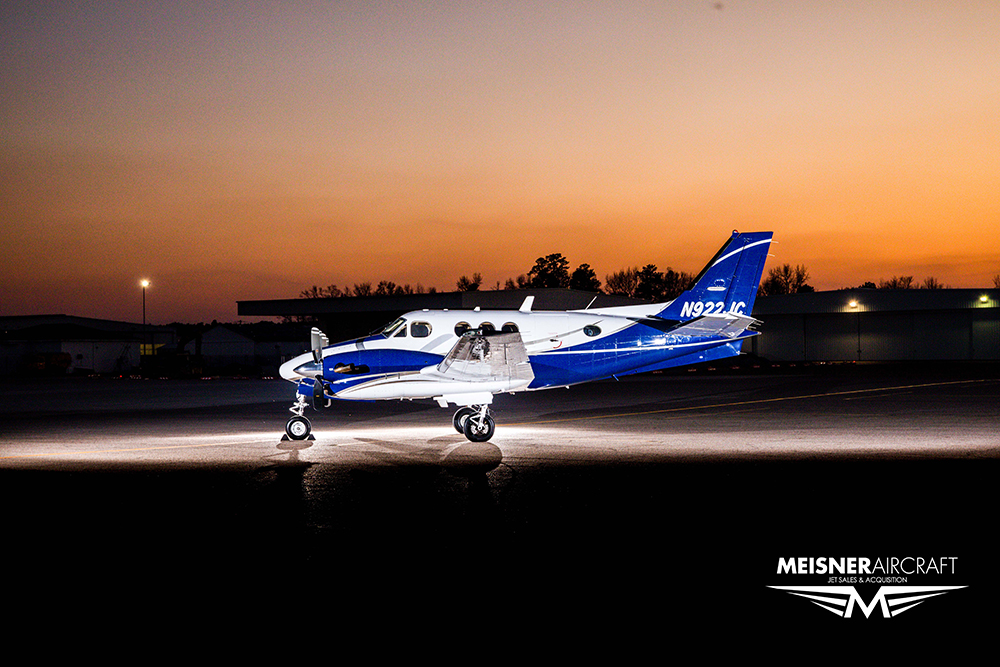

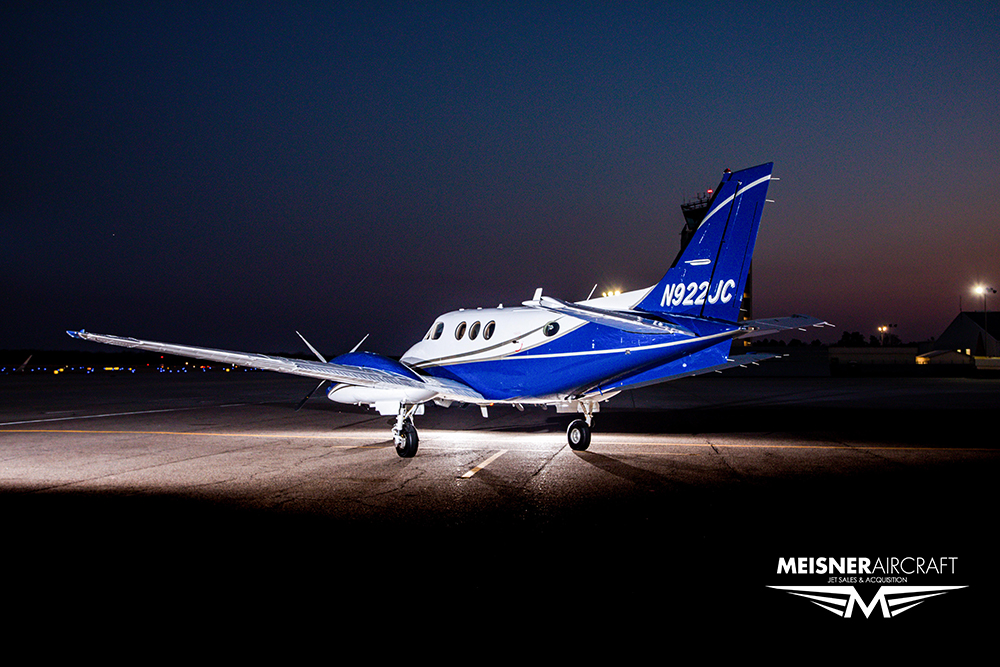

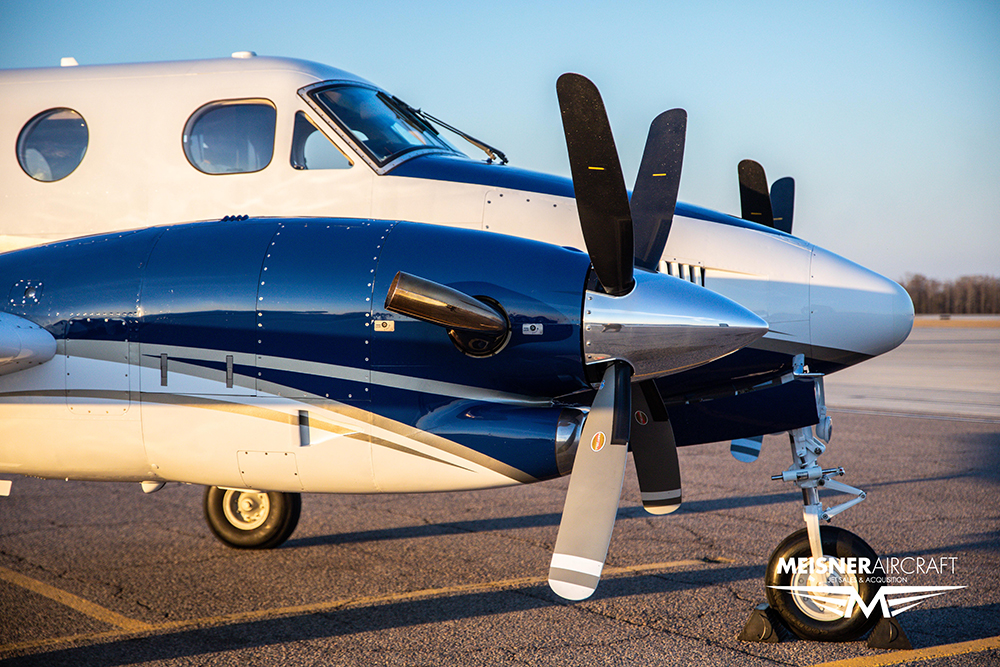

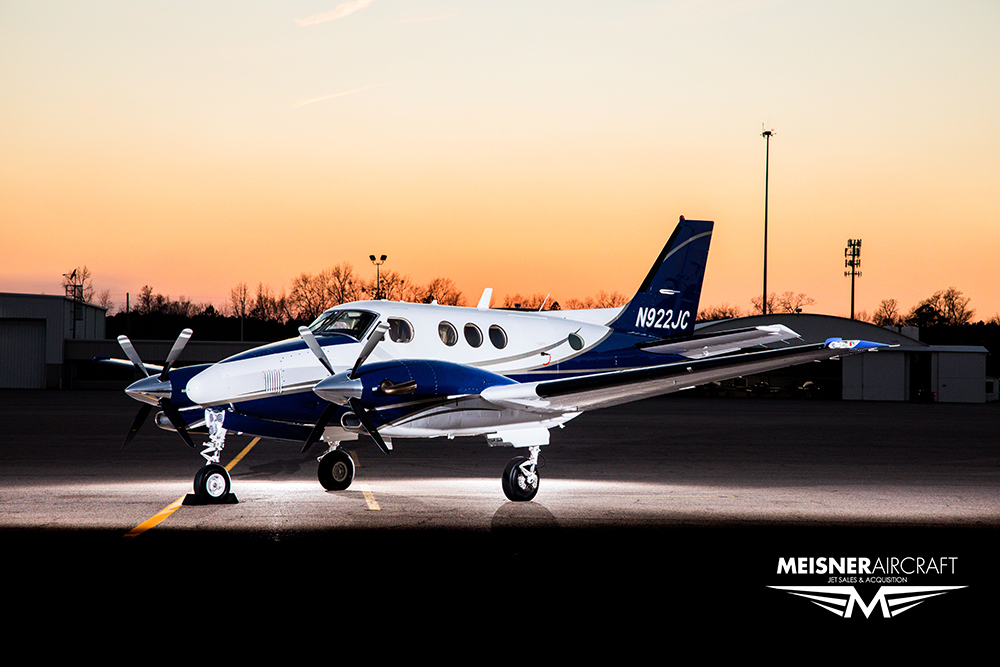

Exterior

Painted November 2018 by Highlands Aviation in Jet Glo Matterhorn White with Aristo Blue and Platinum Pearl accenting.

MAINTENANCE & INSPECTIONS

Phase 1 c/w @ 3239 TT (1.5.21) due @ 4039 TT (1.31.23)
Phase 2 c/w @ 3112 TT (12.18.19) due @ 3439 TT (12.31.21)
Phase 3 c/w @ 3112 TT (12.18.19) due @ 3639 TT (12.31.21)
Phase 4 c/w @ 3112 TT (12.18.19) due @ 3839 TT (12.31.21)
Gear Overhaul c/w 2019 due 2025

Aircraft specifications are always subject to verification by purchaser.
